LibSgfcPlusPlus::ISgfcPointPropertyValue Class Referenceabstract
The ISgfcPointPropertyValue interface provides access to one of the values of a property of an SGF node. The value type is SgfcPropertyValueType::Point. More...
#include <ISgfcPointPropertyValue.h>

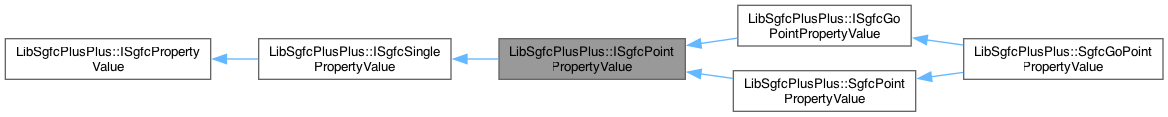

Inheritance diagram for LibSgfcPlusPlus::ISgfcPointPropertyValue:
Collaboration diagram for LibSgfcPlusPlus::ISgfcPointPropertyValue:
Public Member Functions | |
| ISgfcPointPropertyValue () | |
| Initializes a newly constructed ISgfcPointPropertyValue object. | |
| virtual | ~ISgfcPointPropertyValue () |
| Destroys and cleans up the ISgfcPointPropertyValue object. | |
| virtual SgfcPoint | GetPointValue () const =0 |
| Returns the property value interpreted as an SgfcPoint value. | |
| virtual const ISgfcGoPointPropertyValue * | ToGoPointValue () const =0 |
| Returns an ISgfcGoPointPropertyValue object if the property value object was created specifically for SgfcGameType::Go. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| Public Member Functions inherited from LibSgfcPlusPlus::ISgfcSinglePropertyValue | |
| ISgfcSinglePropertyValue () | |
| Initializes a newly constructed ISgfcSinglePropertyValue object. | |
| virtual | ~ISgfcSinglePropertyValue () |
| Destroys and cleans up the ISgfcSinglePropertyValue object. | |
| virtual SgfcPropertyValueType | GetValueType () const =0 |
| Returns the concrete type of the property value object. Depending on the value returned, a caller then knows which one of the convenience casting methods to use. | |
| virtual bool | HasTypedValue () const =0 |
| Returns true if the raw string value returned by GetRawValue() is available as a typed value. Otherwise returns false. | |
| virtual std::string | GetTypeConversionErrorMessage () const =0 |
| Returns an error message that describes why the raw string value returned by GetRawValue() could not be converted to the typed value returned by GetValueType(). | |
| virtual std::string | GetRawValue () const =0 |
| Returns the property value as a raw string, i.e. as close as possible as it appears in the original SGF content. | |
| virtual const ISgfcNumberPropertyValue * | ToNumberValue () const =0 |
| Returns an ISgfcNumberPropertyValue object if GetValueType() returns SgfcPropertyValueType::Number. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| virtual const ISgfcRealPropertyValue * | ToRealValue () const =0 |
| Returns an ISgfcRealPropertyValue object if GetValueType() returns SgfcPropertyValueType::Real. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| virtual const ISgfcDoublePropertyValue * | ToDoubleValue () const =0 |
| Returns an ISgfcDoublePropertyValue object if GetValueType() returns SgfcPropertyValueType::Double. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| virtual const ISgfcColorPropertyValue * | ToColorValue () const =0 |
| Returns an ISgfcColorPropertyValue object if GetValueType() returns SgfcPropertyValueType::Color. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| virtual const ISgfcSimpleTextPropertyValue * | ToSimpleTextValue () const =0 |
| Returns an ISgfcSimpleTextPropertyValue object if GetValueType() returns SgfcPropertyValueType::SimpleText. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| virtual const ISgfcTextPropertyValue * | ToTextValue () const =0 |
| Returns an ISgfcTextPropertyValue object if GetValueType() returns SgfcPropertyValueType::Text. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| virtual const ISgfcPointPropertyValue * | ToPointValue () const =0 |
| Returns an ISgfcPointPropertyValue object if GetValueType() returns SgfcPropertyValueType::Point. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| virtual const ISgfcMovePropertyValue * | ToMoveValue () const =0 |
| Returns an ISgfcMovePropertyValue object if GetValueType() returns SgfcPropertyValueType::Move. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| virtual const ISgfcStonePropertyValue * | ToStoneValue () const =0 |
| Returns an ISgfcStonePropertyValue object if GetValueType() returns SgfcPropertyValueType::Stone. Returns nullptr otherwise. The caller is not the owner of the returned object. | |
| Public Member Functions inherited from LibSgfcPlusPlus::ISgfcPropertyValue | |
| ISgfcPropertyValue () | |
| Initializes a newly constructed ISgfcPropertyValue object. | |
| virtual | ~ISgfcPropertyValue () |
| Destroys and cleans up the ISgfcPropertyValue object. | |
| virtual bool | IsComposedValue () const =0 |
| Returns true if the ISgfcPropertyValue object holds a "composed" value, i.e. a value that consists of a composite of two single values. Returns false if the ISgfcPropertyValue holds only a single value. | |
| virtual const ISgfcSinglePropertyValue * | ToSingleValue () const |
| Returns nullptr if IsComposedValue() returns true. Returns an ISgfcSinglePropertyValue object if IsComposedValue() returns false. The caller is not the owner of the ISgfcSinglePropertyValue object. | |
| virtual const ISgfcComposedPropertyValue * | ToComposedValue () const |
| Returns an ISgfcComposedPropertyValue object if IsComposedValue() returns true. Returns nullptr if IsComposedValue() returns false. The caller is not the owner of the ISgfcComposedPropertyValue object. | |
Detailed Description
The ISgfcPointPropertyValue interface provides access to one of the values of a property of an SGF node. The value type is SgfcPropertyValueType::Point.
ISgfcPointPropertyValue is immutable, i.e. once the ISgfcPointPropertyValue object is constructed it cannot be changed.
Member Function Documentation
◆ GetPointValue()
|
pure virtual |
Returns the property value interpreted as an SgfcPoint value.
Implemented in LibSgfcPlusPlus::SgfcPointPropertyValue.
◆ ToGoPointValue()
|
pure virtual |
Returns an ISgfcGoPointPropertyValue object if the property value object was created specifically for SgfcGameType::Go. Returns nullptr otherwise. The caller is not the owner of the returned object.
Implemented in LibSgfcPlusPlus::SgfcGoPointPropertyValue, and LibSgfcPlusPlus::SgfcPointPropertyValue.
The documentation for this class was generated from the following files:
- /Users/dev/Documents/libsgfcplusplus/include/ISgfcPointPropertyValue.h
- /Users/dev/Documents/libsgfcplusplus/src/interface/public/ISgfcPointPropertyValue.cpp
